1.47 inch 194*368 QSPI Smart Watch IPS AMOLED Screen with Oncell Touch Panel

Short Description:

AMOLED stands for Active Matrix Organic Light Emitting Diode. It’s a type of display that emits light itself, eliminating the need for a backlight.

The 1.47-inch OLED AMOLED display screen, featuring a resolution of 194×368 pixels, is an exemplar of the Active Matrix Organic Light Emitting Diode (AMOLED) technology. With a diagonal measurement of 1.47 inches, this display panel presents a visually striking and highly defined viewing experience. Comprising a genuine RGB arrangement, it is capable of reproducing a staggering 16.7 million colors, thereby ensuring a rich and accurate color palette.

Send email to us

Product Detail

HEM Displays Quality Control

Product Tags

Product Parameters

This 1.47-inch AMOLED screen has achieved notable popularity in the smart watch market. It has not only become a preferred option for smart wearable devices but has also gained traction among a broader range of portable electronic devices. Its combination of technological sophistication and compact size makes it an ideal choice for applications where both visual quality and portability are of prime importance.

Diagonal Size	1.47 inch OLED
Panel type	AMOLED, OLED screen
Interface	QSPI/MIPI
Resolution	194 (H) x 368(V) Dots

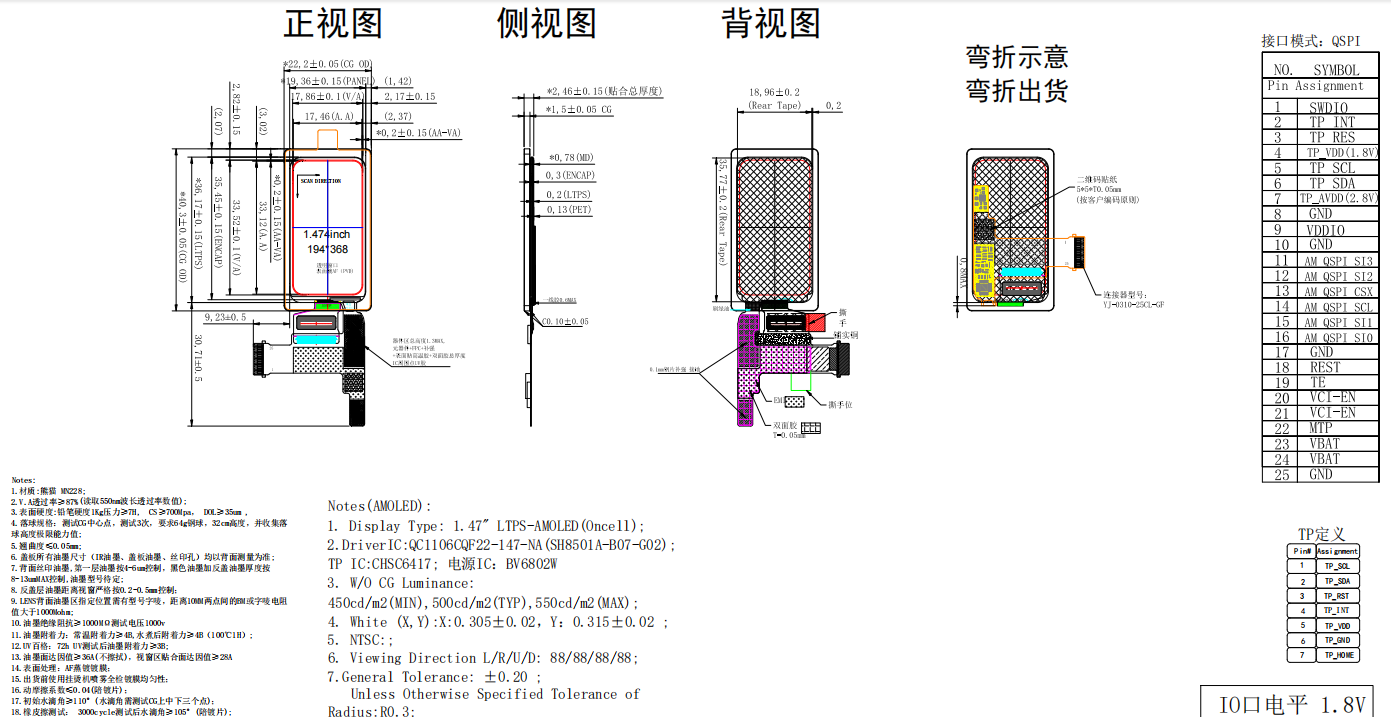

Active Area	17.46(W) x 33.12(H)
Outline Dimension (Panel)	22 x 40.66 x 3.18mm
Viewing direction	FREE
Driver IC	SH8501A0
Storage temprature	-30°C ~ +80°C
Operating temprature	-20°C ~ +70°C

Product Details

AMOLED represents a leading-edge display modality applicable to a variety of electronic gizmos, particularly smart wearables like sports bracelets. The building blocks of AMOLED screens are infinitesimal organic compounds that light up when subjected to an electric current. These self-illuminating pixels equip AMOLED displays with lively colors, sharp contrast, and intense blacks, contributing to their remarkable popularity among consumers.

OLED advantages:
- Thin (no backlight required)
- Uniform brightness
- Wide operating temperature range (solid-state devices with electro -optical properties that are independent of temperature)
- Ideal for video with rapid switching times (μs)
- High contrast (>2000:1)
- Wide viewing angles (180°) with no gray inversion
- Low power consumption
- Customized design and 24x7 hours technical supported
